QL-810W

Label printer with USB, Wi-Fi and AirPrint. Prints both black and red text. Replaced by QL-810Wc.

  • Error: Generic Text label 'Warranties' not set for language 'is-IS' (Site: 'MAIN-Nordics').

USB and Wi-Fi connectivity with AirPrint support

Print labels up to 62mm wide from PC, Mac, smartphone or tablet

Built-in label editing software doesn't need installing. Simply click to run

Product Details

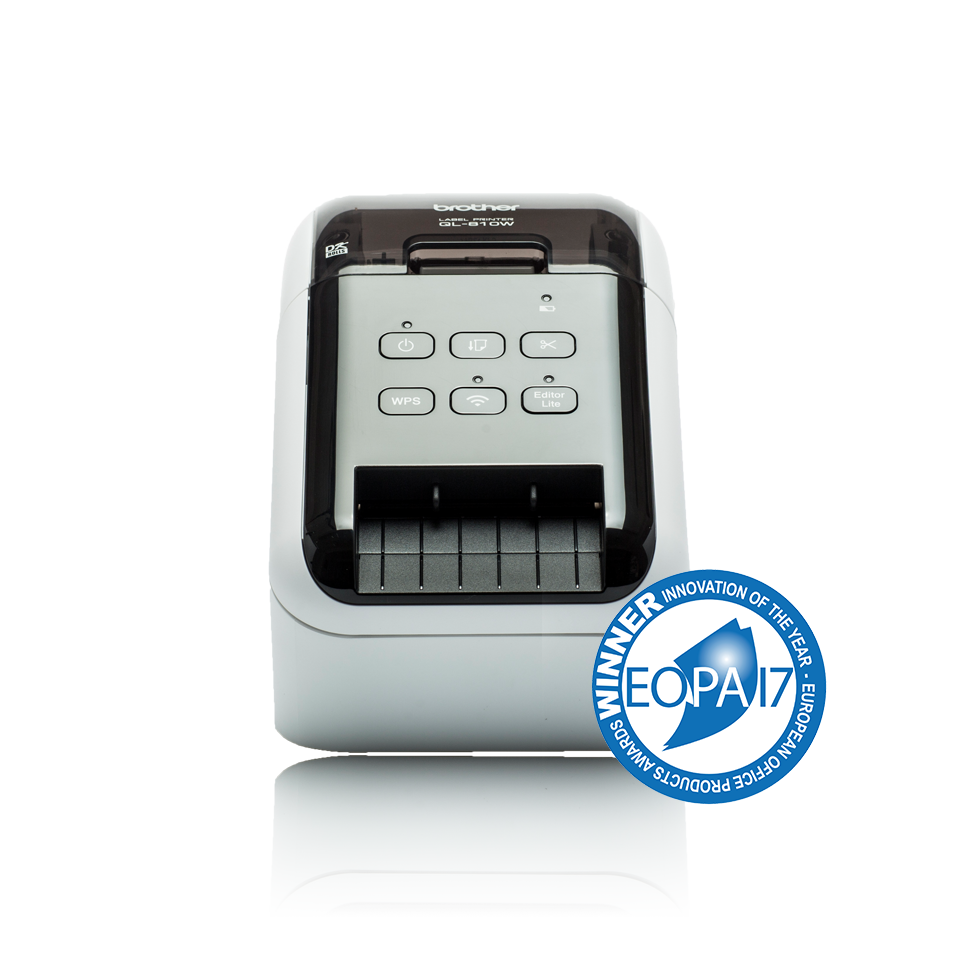

QL810W_main

Print in black and red without needing ink or toner

Integrated cutter to create your own length labels

Optional rechargeable Li-ion battery base for mobile labelling applications

Key Features

  • USB and Wi-Fi connectivity with AirPrint support
  • Print labels up to 62mm wide from PC, Mac, smartphone or tablet
  • Built-in label editing software doesn't need installing. Simply click to run
  • Print in black and red without needing ink or toner
  • Integrated cutter to create your own length labels
  • Optional rechargeable Li-ion battery base for mobile labelling applications

About Product:

This high-speed label printer connects to your PC, Mac, smartphone or tablet using USB or Wi-Fi. The built-in P-touch Editor Lite software is so easy to use - simply connect the printer to your computer, click the icon to launch the software and design and print your labels.

Thanks to its advanced print mechanism and special label roll, you can also print labels that can contain both black and red colours without the need for ink or toner.

And when you discover you can print custom sized labels up to one metre in length using the integrated cutter and continuous label rolls, it's easy to understand why the QL-810W is the ideal choice for offices, workgroups, mail rooms and receptions.

Compatible with

  • Wireless network connectivity
  • iPrint&Label logo

Specifications

General

Maximum label width (mm) 62
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 99
Technology Direct thermal
Template upload from PC Yes

General Supplies

Type DK rolls (DK die-cut labels / DK continuous length tape)

Connectivity

AirPrint Yes
USB interface Ver 2.0 (full speed)
Wi-Fi Direct Yes
Wirelesss network interface IEEE 802.11 b/g/n

Dimensions & weights

Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.12 kg

In the box

AC adaptor Yes
AC adaptor power cord Yes
Tape cassettes 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters)
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes

Network

Wireless network security WEP, WPA-PSK/WPA2-PSK (TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)

Operating systems & software

Macintosh Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher
Windows Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10

Printing

1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION
Black and red printing capability Yes
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 62 mm
Maximum print width 58 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300, 300 x 600
Standard print speed 110 labels per minute
Standard print speed 176 mm per second

P-touch Editor label design software

Database file compatability csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes

Solutions

SDK (Software Development Kit) Yes

Warranty

Warranty 2-Year Warranty
Show more +
Show Less -

Support & documents

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product...

Print labels the way you want

This advanced label printer is designed for the demands of a busy workplace, yet easy to set-up and use. Using the same technology as USB pen drives, simply connect to your PC or Mac, and run the built- in software. No need to install printer drivers. Alternatively download the free P-touch Editor label design software and printer drivers to design and print fully customised labels containing text, frames, barcodes and images. And easily share the printer with colleagues over your wireless network using P-touch Editor Lite LAN software.


Wired and wireless connectivity with AirPrint compatibility

Having both USB, Wi-Fi and AirPrint built-in as standard, you can choose whether to use as a personal label printer on your desk, or let others also use it from their PC or Mac via your wireless network.


Print from PC, Mac, iOS and Android devices

Choose from several options for designing and printing labels. Download for free the P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Alternatively, head on over to your app store to download the free iPrint & Label app for iOS and Android, then quickly create and print labels from your mobile devices, wirelessly.


Works with Microsoft Word/Excel/Outlook

Highlight, click and print your text data directly from Word, Excel and Outlook with just a click! The P-touch Editor add-in for Microsoft Office (Windows only) allows you to print labels with the information you use every day. Alternatively, if you have text saved in an Excel or .csv file, import this into P-touch Editor and simply place each field on your label layout to print many labels with the same format (design). Ideal for printing address, product and pricing labels.


Print any size labels, in black and red

Rolls are available in a range of traditional die-cut (pre-sized) labels, or continuous that lets the built-in cutter cut your label to the precise length (up to one metre). And now you can draw attention to important information by including red* on your labels too - ideal for highlighting use-by dates, allergens and other critical information.

*DK-22251 roll required

Waterproof P-touch laminated label tested to the extreme

Optional Li-ion battery base

There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.


Large range of labels for any application

The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:

  • Pre-sized die-cut adhesive labels in paper and plastic film material.
  • Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre).
  • Non-adhesive card ideal for receipts and name badges.
  • Removeable adhesive for repositionable labels.




Industry uses

Office

With wireless printing, multi-users can benefit from highly visible mail and files using eye-catching black and red labels from our two-colour roll. Print in black on both continuous roll and pre-sized labels too.

Create bespoke address labels, storage box labels, file folder labels cabinet labels, shelf labels, name badge labels, indoor temporary signage, office supplies labels, office furniture labels office equipment labels and more.

Visitor Management

Improve visitor management with highly visible black and red ID badges printed on our two-colour continuous roll, and highlight dates, times, access areas and fire points. Wi-Fi connection lets you conveniently print labels from anywhere and across multiple devices including a smartphone or tablet via the app. The optional battery base offers a mobile solution.

Applications include visitor badge labels, address labels and indoor temporary signage.
